Container Ship Cargo Stowage and Planning Procedures

The aim of ship's officers and crew members on board should be to prevent damage or deterioration while the cargo is under their care and to deliver it, as far as possible, in as good condition and order as it was when received aboard. If unacquainted with a certain type of cargo should ascertain as to its nature and any necessary precautions. Therefore, the Master and officers of all vessels require a good working knowledge of the various kinds of cargo they are likely to carry their peculiar characteristics, liability to damage, decay, or deterioration, their measurement, and the usual methods of packing, loading and discharging, stowage, dunnage, etc., as the Master is responsible for the safe loading of his vessel and the proper storage of the cargo.

containerships operational matters
Oil Tanker Safety Guide
The actual handling of the cargo in loading and discharging is done by stevedores, who are experienced men appointed for this purpose when a vessel arrives at a port. It does not release the Master from the responsibility for the safety of the ship and cargo, and he must supervise the work of the stevedores for general safety.

Therefore, during stowage, the first consideration must be given to safety. The cargo must be stowed so that the ship will be stable and seaworthy, and it must be secured in such a manner that it cannot shift if the vessel encounters terrible weather. The type of vessel, the cubic capacity of her compartments destined for the cargo and the appliances on board or ashore for loading or discharging, as well as the nature of the cargo, influences how to stow the cargo in the best possible manner. The ship must be made neither stiff nor too tender. The next consideration is for the safety of the cargo itself: it must not be damaged by shifting; certain commodities become easily tainted by others; rainwater might penetrate. By appropriate ventilation, condensation or sweating must be prevented. Valuable cargo may be stolen or broached.

Finally, the Chief Officer must bear in mind the various destinations of the goods the ship carries, and arrange things, as far as he can, to see that the cargo for a specific place can be lifted without disturbing the other cargo. The Chief Officer must watch closely the ship's stability (i.e., what the ship's trim is or how she is sitting).

Since a ship is supported by fluid pressure, she will incline in any direction according to the position of the weights placed on her. The trim, therefore, is the angle that a ship is making, fore and aft, with the water.

The levels are read by numbers painted on the ship's stem and stem. These are called draught marks. Another word is a heel. It means a list or inclination from one side to another, caused by loading. The Chief Officer must watch the load lines. They are welded or punched on and then painted. Working stowage plans are drawn up to assist in planning. Master plans definitively document the positioning of containers on board.

Fore and aft stowage

Load stowed along the length of the container or the ship. Contrast athwartships stowage. In the context of load securing, it is of utmost importance whether a container is stowed fore and aft or athwartships on a ship. In the case of athwartships stowage, the greatest acceleration forces act on the actual container longitudinally rather than transversely. Load securing measures must then be taken with this in mind.

Container Stowage (DOORS AFT) Containers are whenever possible to bestowed with the doors facing aft. However, reefer containers can be stowed doors facing forward as per plug socket arrangements on a case by case basis.

Container Stowage (OPEN TOPS) Whenever possible, open-top containers on deck are to be stowed in such a position; a standard container can be stowed on top of them. If this is not possible, due to overweights, or any other peculiarities, consideration is given to stowing them with the maximum shelter and all tarpaulin lashings checked and tightened by the stevedores.

Bay-tier-row system

A numbering system for the arrangement of containers on a vessel allows the bay is specified first, then the tier (vertical layer), and finally, the container row, which runs the length of the ship. According to this principle, bays are the container blocks in the transverse direction; rows are the lengthwise rows and tiers are the vertical layers.

Cargo information

Goods can be rendered fit for container transport by taking into account individual transport information relating to loss prevention. Fitness for container transport may depend on the season or the route the cargo will take over land or sea. It must be adapted to the conditions of the transport route. The cargo information may also be helpful when considering how best to utilize a standard container or the possible use of other container types.

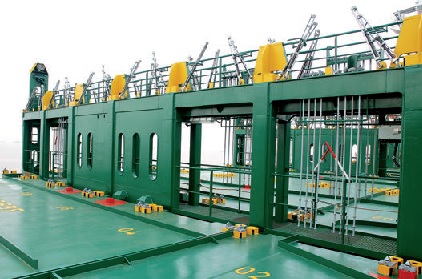

Fig: Lashing bridge at containership

Transport requirement

Individual packages are known as general cargo, which may be divided, depending on atmosphere requirements (natural, partially air-conditioned or temperature-controlled atmosphere), into general cargo, general cargo requiring ventilation and refrigerated cargo, which place corresponding requirements on containers (general-purpose container, ventilated container, refrigerated container), or indeed into further sub-categories .

Compatibility characteristics

If goods are to be stowed together when packing a container, the interrelationships between the transport properties of products must be taken into account, since disregarding them may result in quality degradation and damage. Goods may react with one another and possibly with their environment.

principles of stowage

When stowing and securing containers, the following points should be borne in mind:
  1. a deck stack of containers is only as strong as the weakest component in that stack. Premature failure of a component can cause loss of an entire stack. During loading, containers should be inspected for damage and, if damaged, they should be rejected

  2. twist locks limit vertical and transverse movement. Diagonally crossed lashing rods, placed at the ends of a container, can withstand large tensile loads

  3. outside lashings are sometimes used. These are lashings that lead away from a container. However, although this arrangement provides a more rigid stow than a combination of crossed lashings and twist locks, it is less common

  4. containers exposed to wind loading need additional or stronger lashings. When carried in block stowage, it is the outer stacks that are exposed to wind loading. However, when carried on a partially loaded deck, isolated stacks and inboard containers can also be exposed to wind, in which case, additional lashings need to be applied

  5. if containers of non-standard length, that is, 45, 48 or 53 feet are carried, the ship arrangement will need to be specially adapted

  6. 45-foot containers fitted with additional corner posts at 40-foot spacing can be stowed on top of 40-foot containers. Lashings can be applied in the normal way. It should be noted, however, that the new corner posts may not be suitable for carrying the required loads, either from the container or from those stowed above. Lashings should not be applied to the overhang. The container specification and the Cargo Securing Manual should be consulted

  7. 40-foot containers may be stowed on top of 45-foot containers. However, this arrangement of stowage will present difficulties in fastening/unfastening twist locks, and it will not be possible to apply lashings to the 40-foot containers

  8. when carrying over-width containers, for example 45-foot or 53-foot containers with width 8' -6", adaptor platforms may be used. These must be certified by a class society or an appropriate recognized body. The arrangement must be defined and approved in the ship's Cargo Securing Manual

  9. twist locks should always be locked, even when the ship is at anchor, except during container loading and unloading. Lashing rods should be kept taut and, where possible, have even tension. Lashing rods should never be loose, nor should they be overtightened. Turnbuckle locking nuts should be fully tightened

  10. as a ship rolls, pitches and heaves in a seaway, tension, compression and racking forces are transmitted through the container frames, lashings and twist locks to the ship's structure. However, clearances between securing components and the elasticity of the container frame and lashing equipment produce a securing system that forms a flexible structure. Thus, a deck stow of containers will move

  11. containers can be held by only twist locks when two or three tiers are carried on deck, depending upon container weights

  12. arrangements with automatic and semi-automatic twist locks are used to reduce time spent securing the stow and to eliminate the need for lashers to climb the stacks

Checks and tests during discharge and loading
  1. regularly examine lashing components that look for wear and tear, as well as damage or distortion. Check that left-hand and right-hand locking twist locks are not being mixed in the same storage bin. Remove from the ship any lashing component found to be worn, damaged or distorted

  2. make arrangements for some damaged or distorted lashing components to be sent for non-destructive testing. It will determine their strength and help to establish replacement criteria

  3. carefully check twist locks that stevedores return to the ship as the locks might not originate from own ship, that is, their strength and locking direction could differ

  4. discourage stevedores from treating lashing equipment roughly as this can induce weakness

  5. examine dovetail foundations, D rings and pad-eyes for damage. Repair if the damage is found

  6. observe the loading of containers to determine if stowage is in accordance with the stowage plan and that best practice is always followed

  7. observe the application of lashings to make sure that they are correctly applied in accordance with the requirements set out in the Cargo Securing Manual

Checks and tests at sea
  1. 24 hours after sailing, examine, check and tighten turnbuckles. Check that lashings are applied in accordance with the Cargo Securing Manual and that twistlocks have been locked

  2. examine lashings daily. Check that they have not become loose and tighten turnbuckles as necessary

  3. before the onset of bad weather, examine lashings thoroughly and tighten turnbuckles, being careful to keep an equal tension in individual lashing rods. If necessary, apply additional lashing rods to the outboard stacks and to stacks with 20-foot containers in 40-foot bays

  4. re-check lashings after passing through bad weather

  5. make sure that lashing equipment that is not in use is correctly stored in baskets or racks

  6. make an inventory of lashing equipment and order spares before they are needed

  7. check that refrigerated boxes remain connected to the shipís power supply

Additional guideline while planning a container cargo stowage plan:

  1. Containership operation : Cargo Securing
    There are six degrees of motion at sea that a ship may have to encounter in a voyage. However, pitching, heaving, and rolling are three major forces that impact most on a containership's lashing arrangement. Lateral rolling motion factors the greatest challenge for piles of containers. If containers are to be carried safely on the deck of a container vessel, they must be tightly connected to the ship. It is done with the aid of devices known as twist locks. .....

  2. Containership operation : Common reasons for stowfall
    Container stows often fail due to container stacks being too heavy and too high overall, exposing the lower containers to excessive transverse racking and compressive forces due to the tipping effect. Such an anomaly may occur if the ship is unable to calculate the forces acting on stow with precision. The Cargo/Container Securing Manual is limited in this respect as the examples of container weight distributions shown may not cover all permutations and eventualities. Software programs have the advantage of taking into account all known variables........

  3. Containership operation: Cargo hold ventilation
    Cargo holds ventilation onboard a containership is very important as it minimizes the risk of harm or damage to cargo. A proper ventilation system assures the quality of the transported goods by preventing the formation of condensation in cargo spaces, reducing the harmful heating of the shipment, and removing potential hazardous gases from cargo spaces........

  4. Containership operation: Safety of personnel
    In port stevedores board the vessel for lashing, unlashing and cargo operations and their safety whilst on board is the vessels responsibility. It is important to understand that any injury caused to stevedores or shore personnel due to a condition on board being unsafe, can result in very large claims to the vessel. .....

  5. Containership operation: wet damage in cargo hold
    When water entered into a ship's cargo, hold it may cause wet damage to the cargo inside containers especially to those stowed on the bottom stack, unless the bilge water is drained in a proper and swift manner. The regular sounding of bilge well or monitoring bilge alarm must be one of the very important or rather essential routine jobs on board. However, this job requires special attention on board. All bilge alarm need to be tested regularly......

  6. Reefer cargo care at sea
    Unlike permanent cold stores or refrigerated ships, where robust equipment is under constant care by qualified personnel, the ISO refrigerated container may travel by several different modes and be in the care of many and varied people. Before being despatched to load refrigerated cargo (usually at shippers' premises), the container and its machinery should be subjected to a rigorous examination.......

  7. Containership cargo stowage and planning
    Master and officers of all vessels require a good working knowledge of the various kinds of cargo they are likely to carry their peculiar characteristics, liability to damage, decay, or deterioration, their measurement, and the usual methods of packing, loading and discharging, stowage, dunnage, etc., as the Master is responsible for the safe loading of his vessel and the proper storage of the cargo......

  8. Stacking Weights Restrictions
    rior loading cargo, stacking weights of containers must be checked against the allowable stack weights on board the vessel both on deck and under deck. Neglecting above may cause serious damage to ships structure, hull and eventually overall stabilty of ship may get affected. Maximum allowable stack weights of Tank tops, Hatch covers and Decks shall not be exceeded at any time......

  9. Lashing strength calculation
    Lashing strength of deck cargo shall be ascertained by using the appropriate lashing strength calculation software where provided. All resulting values for lashing strength must be within the tolerance limits prescribed by the vessels classification society......

  10. Dangerous goods stowage and segregation
    Clear guidelines apply to the stowage and segregation of Dangerous Goods and in some cases may require particular commodities to be carried in completely separate holds. The interaction of two cargoes will not occur if the packaging of that cargo remains intact. However, the Master must always consider the possible effect should the cargo escape for any reason and should not restrict his consideration to those cargoes which are listed in the IMDG Code......

  11. Reefer Container Stowage
    Reefer containers proposed for stowage must be accompanied by a reefer manifest. This reefer manifest should contain Container No., Stow position, Commodity, Temperature, and Ventilation status......

  12. Out of Gauge Container Stowage
    It is essential that, during out of gauge cargo operations, a careful watch is kept for any damage caused to the vessel, her equipment, or to containers. Notice of any damage must be immediately brought to the attention of the Stevedore's representative, the Port Captain/Supercargo and Charterers Agent. Damage reports must be completed in all cases giving the full and comprehensive details of damage caused......

  13. Special Container Stowage
    After receiving stowage plan ships, Chief Officer must ensure that all Deck Officers are aware of any specialized containers due to be worked, such as reefers, vents, over-heights, over-widths, flat racks, etc. and their unique requirements.....

  14. 20 or 40 or 45 feet Compulsory Stowage Locations
    Most cargo securing manual provide a guideline for different container types. These stow positions of 20 feet,40 feet, or 45 feet are also incorporated in a ship-specific stowage planning software and highlight errors if any violations occur......

  15. Irregular Stowage of Containers
    The Terminal Planner shall present the pre-loading plan to the Chief Officer to obtain his approval/comments. The Chief Officer, in turn, enters the cargo data in the loading computer and must ensure that the required criteria, concerning stack weights, trim/stability/stresses/ visibility limitations, DG cargo segregation, and specialized container requirements, are met. He should allow the bunker/freshwater consumption during the voyage and all possibilities of ballasting / deballasting. The completed loading plan must be presented to the ship's Master for approval.....

  16. Over-stow of Containers
    With a closed roof, the hardtop the container offers the same reliable protection as provided by a standard box. Hardtop containers have more lashing points than other container types. This guaran- tees reliable and convenient securing of cargo. .....

  17. Hatch Cover Clearance (High cube containers Under Deck )
    Hatch cover clearance must be checked carefully in case of loading over height containers or high cube containers underdeck......

  18. Other matters regarding cargo stowage as necessary
    Bulk products carried in a closed container might include malt, grain, seed, polythene granules, chemically inert powders, brake fluid, detergent, fruit juice, wine, non-hazardous oils, sodium silicate, fatty acids and maple syrup amongst many others......
