Ballast water management - USCG final rules

Ballast means a weight loaded onboard a ship to make her seaworthy on a voyage without cargo. Initially, this could have been anything, often just sand and stones from the beach. However, modern ships use seawater in the double bottom tanks, peak tanks, and specially constructed ballast tanks. Nevertheless, carrying ballast water from one place to another associated with many environmental issues. Hundreds of invasive marine species that might be transferred through untreated ballast water can ruin a local ecosystem. In the US, therefore, stringent regulation is in-force to prevent the marine environment. The USCG Regulations 33 CFR Part 151 and 46 CFR Part 162 entered into force on 21 June 2012. It required vessels to treat ballast water with a USCG type-approved system while in a US port. Since IMO type-approved Ballast Water Management Systems do not meet USCG requirements; therefore, the USCG adopted its type approval protocol as there were concerns about the IMO approval process meeting the D-2 standard.

containerships operational matters
Oil Tanker Safety Guide
USCG Final Rule - The Key Points

If a ship operates in US waters, it must comply with the USCG Final Rule.

Implementation : U.S. territorial sea - 12 nautical miles. Applicability : Sea-going vessels previously required to conduct Ballast Water Exchange.Coastwise vessels that do not operate outside the US Exclusive Economic Zone (EEZ) that:
Approaching US water
Approaching US water

Great Lakes:: Vessels over 1600 GRT that depart the Great Lake, transit beyond Anticosti Island and return and pass upstream of Snell Lock, aka "Salties."

Exemption : i)Crude oil tankers engaged in coastwise trade.
ii)Any vessel of the US Armed Forces.
iii)Any warship, naval auxiliary, or other vessel owned or operated by a foreign state currently used for government or non-commercial service.
iv)Deviation from planned voyage (as per 33 CFR 151.2055)
v)For full list of exemptions refer to: 33 CFR 151.2015.

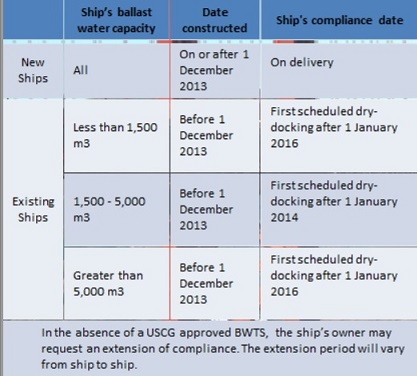

Ballast water management USCG Final Rule Jurisdiction
Ballast water management USCG Final Rule Jurisdiction

Jurisdiction : See table below

Standards : Same as IMO Convention, Regulation D-2. Ballast water exchange at sea is not considered an ideal method of Ballast Water Management; however, efforts are being made to develop treatment methods to comply with the BWM Convention Regulation D-2 Regulation D-2 specifies that treated and discharged ballast water must be within limits set in the table.

Testing : The USCG protocol requires that a USCG test systems approved independent laboratory in both land-based and shipboard testing environments.

Ballast operations and monitoring :On March 28, 2013, the U.S. Environmental Protection Agency (EPA) signed the final 2013 National Pollutant Discharge Elimination System (NPDES) Vessel General Permit (VGP).

USCG Compliance Options: There are several options for compliance with the USCG Final Rule.
  1. Ballast Water Exchange: A vessel may conduct Ballast Water Exchange outside the US EEZ, more than 200nm from the shore if she has not installed a BWTS by the original compliance date or has been granted an extension by the USCG. This option is only applicable up to the specified compliance date or its extension. The vessel, however, will not be required to unreasonably deviate from its voyage or delay the trip to meet the exchange requirement (unless bound for the Great Lakes or Hudson river or the other US protected waters (per VGP Appendix G).
  2. Retain ballast water on board.
  3. Discharge ballast water to a reception facility.
  4. Use water from a US Public Water System (PWS) on condition that the ballast tanks have been cleaned, residual sediments removed and: i) untreated water is not subsequently introduced or ii)untreated water has never been introduced to the tanks and supply lines.
  5. Install a USCG approved Ballast Water Management System or as a temporary alternative: Use an Alternative Management System which can be used for up to 5 years from the vessel's USCG compliance date. Request an extension to the compliance date if there is a justifiable reason why a USCG system cannot be fitted.

Alternative Management Systems

An Alternative Management System (AMS) is a temporary USCG designation given to a ballast water treatment system approved by a foreign administration under the BWM Convention.

FAQs to find out more about an AMS.

USCG Type Approval

Type Approval is the primary process for Ballast Water Management Systems to receive USCG approval. The USCG regulations specifically require Ballast Water Management systems to be evaluated based on their ability to kill individual organisms. A list of approved USCG Ballast Water Management systems can be found on the USCG website.

The Vital Stain Method

The USCG uses the Vital Stain Method to analyze the number of viable organisms in the sample. The Environmental Technology Verification (ETV) staining method (vital stain method) uses a combination of two fluorescein-based stains (FDA and CMFDA) to evaluate the status of organisms in the 10 50 m size class in ballast water samples. The stains will penetrate organisms, where functional esterases will convert them into fluorescent products that are retained by cellular membranes. Using epifluorescent microscopy, fluorescing plants are enumerated as "living." In what ways does the USCG Type Approval process differ from the IMO Type Approval Process? The IMO basis of evaluation is to assess the viability of an organism to colonize after treatment. The USCG evaluates the system's capacity to kill individual organisms. The IMO uses the Most Probable Number method. The USCG uses the Vital Stain method.

Related info :
  1. Marine environment protection recommended guideline

  2. Ballast water management convention recommended guideline for environmental protection

  3. Pollution by ballast water

  4. Impact of ballast water at marine environment

  5. Ballast water treatment system components

  6. Ballast water management USCG final rules
