What is Inert Gas?
It is a noble gas that does not undergo a chemical reaction with any substances. This non-active characteristic of inert Gas makes it the perfect medium to prevent cargo explosion on vessels.
Vessels carrying cargos that produce hydrocarbon vapors require an inerting solution to eliminate the risk of explosions and fires in cargo tanks ( crude oil tankers, chemical tankers, product tankers, gas carrier, etc.). Inert Gas System is used to keep the oxygen content below 8%, a standard set by the International Maritime Organisation ( IMO ). The system offers a combustion solution that creates inert Gas out of the burning process that contains less than 8% oxygen and a non-explosive atmosphere in the cargo tanks. Fire needs oxygen, heat, and fuel to burn. Removing one of the elements in this fire triangle will prevent fire. The fundamental aspect of introducing inert Gas to any compartment that contains a mixture of hydrocarbon gases is to remove the oxygen content. The system, therefore, minimizes the risk of explosion.
Inert Gas (IG) piping
Fitted on all tankers over 20,000 dwt and all tankers fitted
with crude oil washing (COW) systems. IG piping is usually
large diameter low-pressure mild steel, with smaller diameter
branch lines. The internal surface of inert gas piping does not
usually corrode. The external surface is painted but will corrode
if the paint coating deteriorates.
Using the inert gas system on board tankers required some careful consideration. Below guideline should be followed when operating the inert gas system
During Operation Of Inert Gas System (IGS)
The oxygen content of the Inert Gas (also called IG) supplied to cargo tanks should be 5% or less. However, it is to be noted that too little content of oxygen in the IG would introduce other impurities into the cargo tanks.
During the operation of the Inert Gas system (IGS), the automatic Recorder for Oxygen (O2) and IG Pressure on the mainline must be operational.
The details of the start of operation (such as discharge at XXX port, date and time of mark, etc. should be noted on the recording)
Before the start of the IGS, ensure safety confirmation as per the Operational Record. The inspection of the deck seal and PV breaker must be confirmed in good condition. Also, the status of the alarm, indication, and proper operation and sequence of related equipment must be observed.

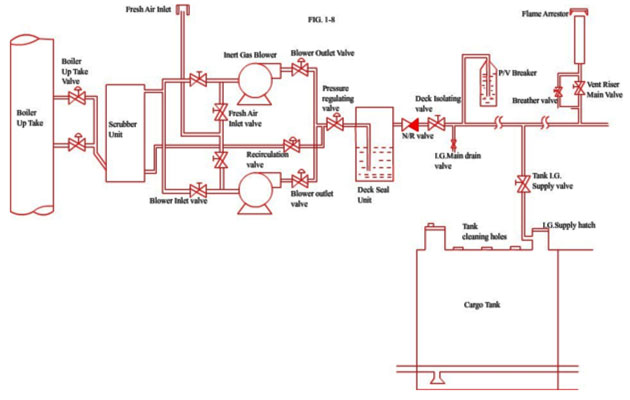

Inert Gas system (IGS) layout
Prior arrival discharge port, follow the company's designated Tanker Discharging Checklist for IGS preparation and checks/tests.
For the operation of the IGS and precautions, refer to IGS operation makers manual, which is provided to each vessel.
Starting in Inert Gas System before entering discharge ports of environmentally sensitive nature, where the air pollution and scrubber discharge flushing could interfere with the ecosystem, the Inert Gas System should be run before embarking the harbor pilot at the time of entering the port.
It is done so that the IGS plant can settle down & avoid dark funnel smoke emissions on start-up.
Cargo Discharging Operations
Operate and test the IGS before arrival at the discharge port.
Ensure that O2 level in all cargo oil tanks is less than 8% (preferably less than 5%) using Double Hull (D/H) Operational Record - Voyage record of COT Oxygen / H2S content. Also, the cargo tank pressure shall be reduced to minimum positive IG Pressure (pressure minimum 100 mmAq.)
Before starting of Discharge Operations, re-confirm all cargo Tank openings are tightly closed (e.g., Vapor locks used for tank gauging, etc.). Cargo tank IG supply valves should be correctly set, before starting IG on deck (i.e., opening IG main supply valve).
The individual Cargo Tank IG valve key is to be kept within the control of the Chief Officer.
Monitor the cargo oil tank O2 level, Pressure parameters, and Temperature throughout the cargo oil discharge operations.
During discharging, the monitoring of the cargo tanks not connected to the IGS shall be done carefully and more frequently. Watch the Temperature. (in case of heated cargoes)
On completion of cargo discharge and before shutting down the IGS, increase the IG pressure in all oil cargo tanks sufficiently. (Allow for cooling down of Temperature inside cargo tanks).
During Ballast Voyage
Maintain the cargo oil tank pressure in all cargo oil tanks at a minimum 100 mmAq during the ballast voyage. Start IGS plant if required to raise tank pressure.
However, if the Temperature was raised sufficiently at the discharge port, the above may not be generally necessary.
Be aware that during a sudden drop in the ambient Temperature, it may cause air to enter the cargo oil tanks through the P/V valves, increasing the O2 level, thereby causing an explosive atmosphere inside the cargo tanks.
Leave individual cargo tanks IG supply valves open during the ballast voyage and monitor the IG main line pressure from the cargo control room or the bridge.

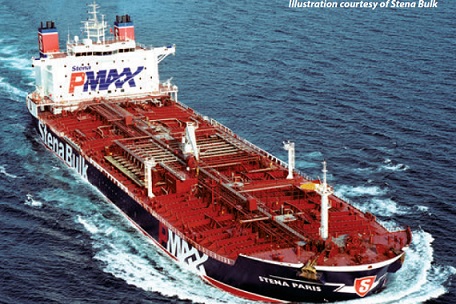

Fig: Product tanker STENA PARIS
Cargo Loading Operation
Ensure that the O2 level in all cargo oil tanks is less than 8% and that the tank pressure is minimum 100 mmAq upon arrival at load port, using Double Hull (D/H) Operational
Record Voyage record of COT Oxygen / H2S content.
In specific ports, the maximum oxygen content of Inert Gas in the cargo tanks maybe 5% to meet particular safety requirements, such as the operation of a vapor emission control system. In such cases, follow terminal requirements.
For special requirements for arrival tank atmosphere conditions and limitations, prior loading, follow applicable local port/terminal requirements.
It is not required to operate the IGS during cargo oil loading operations.
Secondary Venting
The subject of secondary venting and the capacity of the equipment is occasionally questioned by vetting inspectors.
Vessels fitted with the Full Flow PV / High-Velocity Vent Valve(HVVV) comply with the requirements as required by SOLAS Chapter II-2 Regulation 11, Sections 6.3.2, 6.3.4 & 6.4.
The primary venting system on vessels is via IG main mast riser, protected by a full flow P/V Breaker.
Secondary venting is achieved via. Individual cargo tank P/V Valves which have an individual full flow capacity.
PV (Pressure Vacuum) / HV (High Velocity) Valves
The maintenance of cargo tanks PV / HVVV is to be carried out as per the PMS. Such a record of maintenance using Cargo Tank PV Valves and related correspondence is to be filed on board.
During Loaded Voyage
Cargo tanks shall be maintained at positive pressure. Under normal conditions, it is not necessary to run the IGS during the loaded voyage. Moreover, due to the hydrocarbon generation, the level of oxygen inside the tanks would be well under the levels before loading (empty tank conditions), provided no ingress of air has occurred.
If vapor segregation is not required, the tank pressures are connected to the standard IG line and can be monitored from the central location
(Navigation Bridge or Cargo Control Room).
Be aware that during a sudden drop in the ambient Temperature, air may enter the cargo oil tanks through the P/V Valves on each Cargo Oil Tank, increasing the O2 level.
For the sake of exercising due diligence, on behalf of the carrier, on completion of loading, the IGS Record of Pressure shall be left in constant operation, to carry out voyage recording of Cargo Tank IG Pressure.
Where there is vapor segregation required to be maintained between grades, the Segregated tanks pressure shall be monitored frequently (not greater than four hourly intervals).
This interval shall be reduced, depending upon the nature of cargo (tendency to gasify at maintained Temperature), percentage of filling, and Temperature.
Handling Troubles & Failure Of IGS During Discharging / COW Operations
If the Inert Gas System(IGS) is malfunctioning during operations, the oil transfer operations must be suspended immediately, and not resume until the IGS is in good working condition (or) an alternative Inert Gas supply is provided.
Such emergency action in the case of Failure of the Inert Gas System is required to maintain a positive pressure in the cargo or slop tanks.
The inert gas main isolating valve should be shut.
The terminal must then be informed as soon as possible.
Other Operations
To operate the IGS for Tank cleaning, Gas freeing, and Crude Oil Washing Operations, extra caution needs to be exercised in each procedure.
Records
The following records must be retained onboard for minimum 5 years:
Acceptance / rejection of fuel in a quality dispute
Accepting fuel oil for ship use needs some careful consideration since poor quality fuel can cause ships main engine fuel system operational problems, such as purifier or filter clogging, fuel pump scoring or failure, severe cylinder liner wear, fuel injector seizure, exhaust valve seat corrosion or blow-past and turbocharger turbine wheel is fouling. Above is just a shortlist of potential problems. Ships chief engineer should apply his best judgment before deciding to accept or reject bunker fuel oil......
Operational guideline during bunkering
Fuel oil bunkering is a critical operation onboard ships that require receiving oil safely into the fuel oil tanks, without causing an overflow of oil. With the cost of bunkers amounting to 50% of the total operating costs of ships, shipowners need to seek ways to monitor and control this vast expenditure continually. Typically, physical custody transfer of bunkers is made thousands of miles away from the contracting parties' offices, with neither buyer nor seller present during actual bunkering operations.
......
Common bunker terms and related guideline
Ships bunkering is generally applied to the storage of petroleum products in designated tanks for ship's main engine propulsion and power generation at sea. Bunkering is a major voyage cost for ship owners to run their business. A prudent shipowner/operator needs a bunkering plan – allowing for the purchase of bunkers at the best price in quantities sufficient for a safe voyage, but also allowing for the maximum carriage of cargo. Refueling of ships is carried out at all major seaports.
........
Ships bunkering guideline- planning, preparation, safety checks & confirmation
Bunkering checklists should be implemented to reduce the risk of negligence and other operational errors. They must be followed in consultation with the chief engineer, as he is normally the designated officer-in-charge of the bunkering operation. Before bunkering, usually, a junior engineering officer takes soundings of bunker tanks and calculates the volume of fuel oil available in every fuel oil tank on the ship. Then a bunker plan is prepared for the distribution of the fuel oil to be received.
Bunkering arrangement and safety factors onboard When disputes arise over quantity and quality transferred, investigations after delivery are usually inconclusive if the shipboard personnel of the receiving vessel is not correct and or fully informed and trained. Protests, legal fees, management time, loss of goodwill, stress all add on to costs with usually neither party concluding with certainty what transpired onboard......
Bunkering safe procedure and detail guideline for ships
Bunkering may take place offshore, at anchor or alongside. It may be pumped from a road tanker, bunker barge, or another tanker or ship. Whatever the provider, the procedures followed are similar. Bunkering should be considered a high-risk operation, where mistakes can result in pollution, high financial penalties, or even imprisonment......
How to keep bunkering record ?
The consequences of bunker shortage or off-specification bunkers can be very severe. A lower quality bunker supply can lead to ship engine failure, incur loss-time, and additional expenses for refueling. In many parts of the world, greedy bunker suppliers make tricks to supply less.
Both this situation not only increases the financial burden of a shipowner but also damages business reputation. Some critical considerations, therefore, need to be made for a safe bunkering operation.
Precautions prior transferring fuel oil into storage tanks
Fuel oils are loaded through deck fill connections that have sample connections provided to allow the fuel to be sampled as it is taken aboard. HFO is placed in storage tanks fitted with heating coils. In preparation for use, HFO is transferred to the fuel oil settling tanks via FO transfer pumps, which are equipped with a suction strainer. Piping is so arranged that the pumps can convey fuel between storage tanks and the deck connections for offloading. Settling tanks are used to sanction gross water and solids to settle on the bottom.
......
Treatment of waste oil and oily bilge
All modern cargo ship types are now essentially equipped with incinerators to process waste oil, bilge, and sludge generated in ships' machinery spaces and also overboard discharge arrangements under 15 ppm. However, if such onboard disposal is improper or impossible especially when ship transiting through a special area, all waste items should be taken ashore for disposal at a shore receiving facility......
Procedure for oil tankers and how to maintain records
Tankers are specialized vessels that include crude oil, product, chemical, LNG, and other tanker types. Tankers spend considerable time in ballast given the typical one -way nature of the underlying trades. Tankers are selfdischarging and most are equipped with a series of pumps that allow for a fast turnaround in port......
Heating of fuel oil storage tank
Ships fuel oil bunker tanks and waste oil tanks must have some form of tank heating. Normally the heating is by way of steam produced by an oil-fired boiler and passed through coils inside the oil tank. Other ways to heat the fuel tanks are by using thermal oil. It also utilizes an oil fired boiler that heats the thermal oil, which is circulated through coils inside the tank by a pump. Temperature regulation and monitoring can be automatic and self-adjusting but are commonly effected by checking the tank temperature and manually adjusting the heating accordingly......
Fuel oil viscosity control
Fuel viscosity control is a method to control viscosity and temperature of Fuel Oil (FO) for an active fire in diesel engines of motor vessels and generators of oil-fired energy plants. Fuel oil's viscosity heavily depends on the temperature; the higher is the temperature, the lower is the viscosity......
Tanker vessel safety guideline - inert gas system
Vessels carrying cargos that produce hydrocarbon vapors require an inerting solution to eliminate the risk of explosions and fires in cargo tanks ( crude oil tankers, chemical tankers, product tankers, gas carrier, etc.). Inert Gas System is used to keep the oxygen content below 8%, a standard set by the International Maritime Organisation ( IMO )......
Tanker vessel safety guideline - gas freeing procedure
The safest way to gas free an oil tank which is fitted with an inert gas system is to use a fan and vent the tank. Before entry, an O2 meter must be used and the tank must also be checked with an explosimeter. These meters must also be used while in the tank. The sketch shows a diagrammatic view of an explosimeter.....
Precautions prior entering freezing zone - Check items in oil tankers operation
Ocean water freezes just like freshwater, but at lower temperatures. Freshwater freezes at 32 degrees Fahrenheit, but seawater freezes at about 28.4 degrees Fahrenheit, because of the salt in it. Due to the presence of many hostile conditions, any merchant ship, while entering a freezing sea area, significant challenges are being encountered concerning safety and reliability of navigation. Shipmaster should ensure that the following measures have been taken to prevent damage to Vessel, Machinery, Pipelines, and Equipment prior entry into areas with Freezing Conditions......
Tanker vessel safety guideline - how to prevent oil spillage
There exists an inherent risk of oil spillage while handling oil cargo on board an oil tanker. However, good prevention initiatives can go a long way in reducing the risk of oil pollution from ships. In the event of any oil spillage from the ship, it is necessary to ensure that effective preparedness measures are in place to ensure a timely and coordinated response to limit the adverse consequences of pollution incidents involving oil and hazardous and noxious substances (HNS). We have summarized below some fundamental guideline for safe handling of oil cargo.....
Tanker vessel safety guideline - tank cleaning procedures
Tank cleaning is the process of removing hydrocarbon vapors, liquids, or residues from cargo tanks onboard a tanker. Tank cleaning may be required for one or more of the following reasons:
To carry clean ballast, gas-free tanks for internal inspections, repairs, or before entering the dry dock. Also to remove sediments from tank top plating.
Pumproom procedure
A pump room onboard an oil tanker contains the largest concentration of cargo pipelines of any space within the ship and leakage of a volatile product from any part of this system could lead to the rapid generation of a flammable or toxic atmosphere......
Pumproom inspection for tankers
Correct use and setup of pump room(s) ventilation systems are essential to ensure that pump room(s) remain free from explosive or toxic atmospheres. Invariably the system fans are set up to make suction from below the bottom floor plates, i.e., from the bilge area. It gives full and proper circulation of all air in the pumproom to maintain a safe atmosphere......
Crude oil washing for tankers Crude oil washing (C.O.W.) is a system whereby oil tanks on a tanker are cleaned out between voyages not with water, but with crude oil - the cargo itself. The solvent action of crude oil makes the cleaning process far more effective than when water is used. However, such a technique of washing cargo tanks involves many hazards, and careful consideration will need to be made for safe planning and execution. ......
Oil pollution prevention method
Any misuse of fuel oil can lead to significant claims and jeopardize the safety of the ship. The International Safety Guide for Oil Tankers and Terminals (ISGOTT) makes recommendations for the safe carriage and handling of petroleum cargo, which is seen as a fundamental part of overall Tanker Safety.
General precautions for tankers Navigating through thunderstorms should be avoided as far as practically possible by changing of course while cargo related activities are carried out which may result in discharge of flammable vapors. If the passing through thunderstorms cannot be avoided, all open cargo oil tank hatches should be closed until the vessel has passed through the thunderstorm The valves in the main vent lines may be temporarily secured in locked position, but must be opened immediately after passing through the thunderstorm........
Tanker equipment and machinery The Chief Engineer and Chief Officer shall jointly be responsible for the inspection and maintenance of the following cargo oil transfer equipment and machinery before entering port. The Chief Engineer shall prepare and maintain the equipment manuals of machinery and equipment, including critical components related to cargo operations including the procedures for their Emergency operation. All items should be in good operational condition.
