Container ship operation: Common reasons for stow collapse
Container stows often fail due to container stacks being too heavy and too high overall, exposing the lower containers to excessive transverse racking and compressive forces due to the tipping effect. Such an anomaly may occur if the ship is unable to calculate the forces acting on stow with precision. The Cargo/Container Securing Manual is limited in this respect as the examples of container weight distributions shown may not cover all permutations and eventualities. Software programs have the advantage of taking into account all known variables.
The wind force acting on the outboard stacks not being taken into account.
Loose lashings allowing the stacks to tilt and arrest sharply as the slack is taken up. This causes the securing system to experience a sudden shock load which may exceed safe working limits by a considerable margin.
• Two 20 foot containers placed in a 40 foot slot, leaving insufficient space for lashing rods to be fitted to the inward facing ends. This arrangement should be avoided unless the containers are either lightly loaded or empty and the stack height is low, or if the Cargo / Container Securing Manual allows.

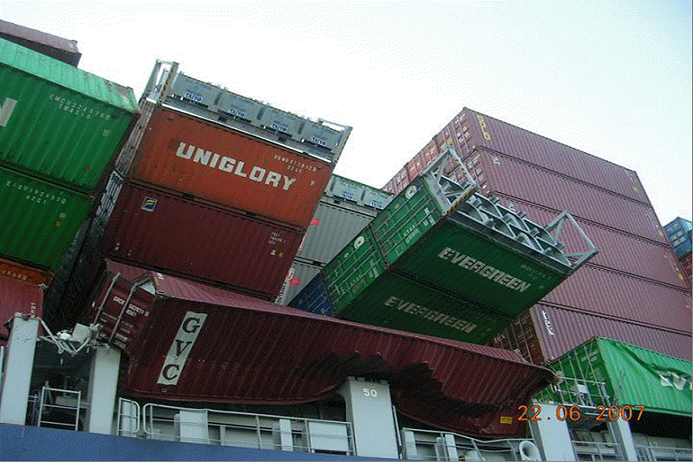

Fig: improper lashing caused container stowfall
• Rogue twist locks (e.g. right-hand locking mechanism) finding their way aboard a vessel equipped entirely with twistlocks of a different type (e.g. left-hand locking mechanism).
• If manual twist locks are used, screening checks should be carried out whenever possible in order to ensure that rogue devices are not present.
• High cube boxes stowed cumulatively, resulting in the highest container extending well above the top of the cell guides.
• Wherever possible, the vessel should scrutinize pre-plan details for the presence of non-standard containers. If the pre-plan shows that out of gauge boxes are to be loaded in unacceptable positions, more suitable stowage options should be discussed and agreed with the terminal as soon as possible.
• Securing equipment not applied correctly, not tightened or not applied at all, contrary to the provisions of the Cargo/Container Securing manual.
• Stevedores should be given detailed instructions regarding the positioning of the lashings and equipment to be used and, as far as practicable all arrangements should be checked thoroughly by the crew before sailing.
• Portable and/or fixed securing equipment in damaged or worn condition.
• Extreme weather conditions.
• The movement of inadequately secured heavy cargo within a container during adverse weather, resulting in damage to the container walls and/or framework and leading to the eventual collapse of the stack.
