Container stacks are containers which are stacked vertically and secured horizontally by
stackers, lashing etc.
Prior loading cargo, stacking weights of containers must be checked against the allowable stack weights on board the vessel both on deck and under deck. Neglecting above may cause serious damage to ships structure, hull and eventually overall stabilty of ship may get affected.
Maximum allowable stack weights of Tank tops, Hatch covers and Decks shall not be exceeded at any time.
Container stack load – Hatch covers for Panamax ships have stack weights up to 90
tonnes/20ft units and 120 tonnes/40ft units. Post-Panamax vessel could have 100
tonnes/20ft and 140 tonnes/40ft units.
It is essential to avoid loading heavy containers over light, or at the top of a stack in a deck
stow, unless specifically permitted in the Cargo Securing Manual. This is because the
securing system would normally have been designed on the assumption that light
containers are stowed on top. Stowage may allow for ‘heavy-heavy-light’; however, loading
‘heavy-medium-medium’ may result in the same stack weight but would produce different
strain on the securing system, especially if the GM is high.

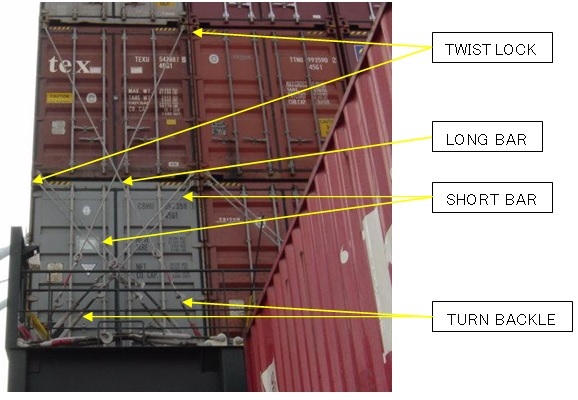

Container securing arrangement
If any stacks are found to be exceeding the allowable stack weights, Terminal planner / Central planner is to be informed and cargo stow plan appropriately modified. The most common mistake made when stowing and lashing containers is to load heavy
containers over light or to load so that the maximum permissible stack weights are
exceeded. Heavy on light can only be accepted when specifically permitted in the Cargo
Securing Manual.
In case such anomaly is noticed after containers have been loaded, the master shall notify all concerned parties and have the condition corrected at the earliest prior departure.
Container stowage in holds
The standard 40ft containers (FEU) are stowed in cell guides
without any lashing devices. If there is also a certain number of 20ft units (TEU) available
at all time, the creation of a hold with 20ft guides may be considered. In most cases, 40ft
cell guides are installed exclusively and TEUs are stowed in the 40ft bays. This, however,
needs securing job.
There are basically 3 systems to stow TEUs into 40ft cell guides:
- Side support stowage system.
The containers are connected with double stacking cones in a transverse direction. At
the longitudinal bulkhead, you have either a fixable installed guide rail or foundations for
buttresses that take up the load. This is the most conventional system. The containers can
be loaded/removed only tier wise.
- Stowage with anti-rack spacers.
The containers are connected longitudinally with so called “anti racking spacers”, thus
creating out of two 20ft containers one 40ft-unit. This system avoids side supporting,
that means a 20ft stack can neighbour a 40ft stack and there are no foundations or rails
in the longitudinal bulkhead. The disadvantage is that the containers have to be loaded/
removed also tier wise.
- Mixed stowage
The third system becomes more and more popular with regard to the a.m. disadvantages:
the mixed stowage. Starting from the tank top you can stow from one to four tiers 20ft
containers (secured only by single stacking cones) and top them up with at least on
FEU. This system allows stack wise loading/discharge. The only disadvantage is that the
stackweight of the TEUs is reduced a bit to about 60 ton.
The new size containers make another problem. Most easily they can be stowed on deck
installing additional foundations on hatch covers.
Container stowage on deck
Ship motions impose heavy loads on the deck cargo which
would soon move unless secured in place. Containers carried on deck may be secured
by twistlock alone. The integrity of the stow then relies on the racking strength of the
containers.
Up to approx. 50t stackweight, the lowest container is able to carry the
transverse and longitudinal forces on top by itself. With higher stackloads, the stack
must be “ reinforced” by lashing bars: single or double cross lashings depending on the
stackweight. The effectiveness of double lashings is 1.5 times that of single lashing, unless
a load-equalising device is fitted. The general principle is that securing in the forward part
of the ship are designed to be suitable for forces increased by 20%, unless a breakwater or
similar substantial protection is fitted.
The 40ft ends have a lashing gap of minimum 700mm, so that lashing can be applied. If two
20ft containers are positioned on one 40ft place, the gap is 76mm wide and it is not possible
to use lashing and the stack weight is limited to 50t.
It is a rare practice to link adjacent stacks of containers. Skiiping the job substantially
simplifies loading and discharging operations. It is, however, sometimes necessary to link
an outboard stack to the adjacent stack to help resist wind loading.
At a wind speed of 90 miles per hour, the wind force is about 2 tonnes on the side of a 20-foot
box and about 4 tonnes on a 40-foot box.
Generally, container stacks do not depend on each other for support. However, they do
provide protection to each other from wind and waves, so stowage in isolated stacks,
especially in outboard locations, should be avoided.
Container ships are likely to be driven hard in order maintain very tight operating
schedules. As a consequence, thousands of containers are lost overboard every year and
continue to be the source of substantial claims for P&I clubs.
Source : Wärtsilä Encyclopedia of Ship Technology
