How Container Stowage Plan Can Affect Hull Strength & Stability Of A Ship

A stowage plan for container ships allows different types and sizes of containers to be loaded efficiently. A good plan helps to maximize the economy of scale, and it also takes many safety considerations during all stages of loading, carrying, and discharging cargo. Particular attention must also be paid to the hydrodynamic design of container ships that operate at high cruising speeds. The tall, heavy deck loads cause problems with righting capacity. For adequate stability, most container ships thus have to carry liquid ballast and be broader amidships.



containerships operational matters
Oil Tanker Safety Guide
The capsize risk of the vessels can be kept within acceptable limits by high values of the roll moment of inertia. Large ballast capacities and high power pumps are essential, both for trimming the ships and for offsetting longitudinal bending moments. Shipbuilders can tailor characteristics by selecting appropriate ratios between length, beam, molded depth, draft, and other dimensions.

The deadweight and hold capacity of container ships may also be stated in metric tons and cubic meters. The number of available slots for 20' or 40' containers, however, is more meaningful. TEU means "Twenty-foot Equivalent Unit", while FEU means "Forty-foot Equivalent Unit".

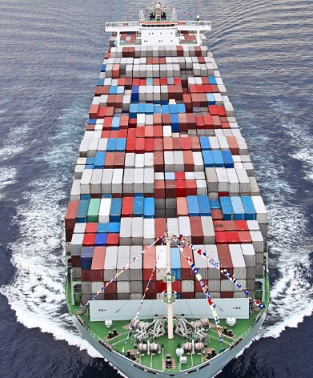

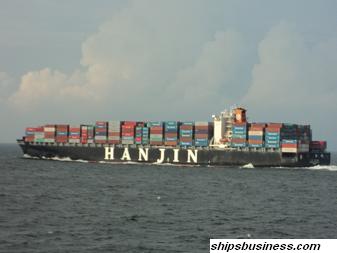

Transporting ISO containers at sea

Standard loading conditions: Loading conditions to be examined to assess whether the stability criteria are met. For a cargo ship, the standard loading conditions are as follows
  1. Ship in the fully loaded departure condition with cargo homogeneously distributed throughout all the cargo spaces and with full stores and fuel.
  2. Ship in the fully loaded arrival condition with cargo homogeneously distributed throughout all the cargo spaces and with 10% stores and fuel.
  3. Ship in ballast in the departure condition without cargo but with full stores and fuel.
  4. Ship in ballast in the arrival condition without cargo and with 10% stores and fuel remaining.

Stress Stability : The Master is responsible for ensuring that, at all loading conditions, the ship satisfies the permissible Stress/Stability criteria. The Chief Officer is responsible for making the Stability/Stress/Trim calculations and for reporting the results to the Master.

Stability & Stress Calculations: The Chief Officer must review the pre-stowage plan. He must also review the final stowage plan presented to him by Stevedores' latest before completion of loading/discharging operations. The actual values of Stability/Stress/Stack-weights are to be compared with the permissible values during the voyage (on departure/during voyage/on arrival) and must be reported to the Master in writing (Printout). This report must also include details for Drafts (including max Air Draft), Displacement, GM, Stresses, Trim, Visibility, Cargo breakdown Ė including special and DG cargo summary, Ballast, Fuel tanks distribution and consumption, & Consumables, etc.

The Master must satisfy himself that the above figures are within the permissible limits. If not, and no further improvement can be achieved by means of ballasting, the Master must demand from the Stevedores to arrange cargo changes. The Master must seek clarification in case the read draught is not in line with the calculated draught due to undeclared weights. Stability calculations to obtain the GM and bending moments must be made for all sailing and arrival conditions and for the worst possible situation to be experienced during the passage. The GM (fluid) must always be above the IMO minimum GM for that condition, and the bending moments, shearing forces, and torsional moments are within the required limits. Copies of Stability calculations are to be signed by the Master and filed as appropriate. The Chief Officer shall calculate the ship's stability condition and print out to get a Master's signature every three days if the sailing period is longer than the three days.

Trimming Tanks Free Surface: The free surface effect of trimming tanks and other ballast tanks in use must be taken into consideration when planning the loading/discharging operations. Wherever possible, ballast tanks must either be empty or fully pressed up.

Bridge Copy Of Stability Calculation: A copy of the stability calculations must be posted on the bridge, and all deck and engine room officers made aware of the stability situation.

Departure Stability: A copy of the departure stability condition for each port is to be filed on board. The Management Office may request a copy to be forwarded to the Office.

Effect Of Strong Winds: Masters and officers must bear in mind the effects of strong winds and ice accretion on high sided vessels, especially with seven or eight tiers of containers on deck.

Flume Tanks(Passive Roll Stabilisation Tanks): Flume stabilization tanks must be emptied or pressed up (in the case of FW) on arrival in port. If the flume tanks are to be used on the passage, the final GM must be calculated, having a due allowance for flume tank contents and free surface effect.

Stack Weight Limitation: The Master must ensure that all Deck Officers are familiar with the Cargo Securing Manual contents, in particular the stack weight limitations for a tank top, hatch covers, and deck loading. When the final cargo distribution file is received, the Chief Officer must check and approve the stack weights on the loading computer to ensure they are within safe limits. The Officer of the Watch must monitor compliance with the approved loading plan for which stack weights must be taken into account.

Layering Of Containers By Weight: Whenever possible and especially with deck containers, all efforts are to be made for layering the containers with the heaviest ones on the lower tiers. It assists safe stability and reduces the strain on lashings.

Stability Computers: The Chief Officer is responsible for running, at quarterly intervals, a test condition, and the results are to be compared with the published data approved by Class. A printout of the results is to be maintained on board for verification purposes. Whenever the vessel is empty the CO to make a draught survey calculation to identify the vessel light weights and compare the same with the lightship calculation from the shipyard newbuiliding

When considering the acceptability of a container cargo stowage plan, the following additional factors/guidelines concerning hull strength & stability should be taken into account:
